GrimLoc Tactical Locking D-Ring
The GrimLoc is designed for use by operators in a tactical environment as a lightweight corrosion-resistant replacement for heavy metal carabiners. The high-strength polymer structure easily supports tool sling connection points and features a breakaway design to eliminate snags. The GrimLoc is perfectly suited for connecting your tactical accessories that require quick and easy one-handed access.
ITW GRIMLOC SPECS
ITW Grimloc locking D-ring Material
High-strength, corrosion-resistant polymer.
Mounting interface
Designed to clip onto 1" webbing ladders (PALS/MOLLE compatible).
Function
Replaces traditional metal snap-links and carabiners.
Spring-loaded gate for quick on/off with one hand.
Locking mechanism to prevent accidental opening under load or impact.
Benefits for rail use
Won’t clang, spark, or rattle against steel.
Resists rust, salt, and weather.
Light, tough, and field-replaceable if a car gets truly abusive.
Quantity on Evac Pod

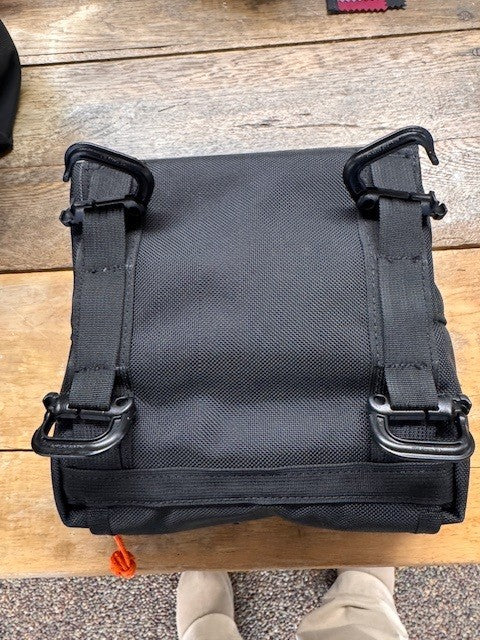

Four ITW Grimlocs to secure the Ocenco M-20.2 hard case to Rail Runner, Rail King, and other 1" web platforms.

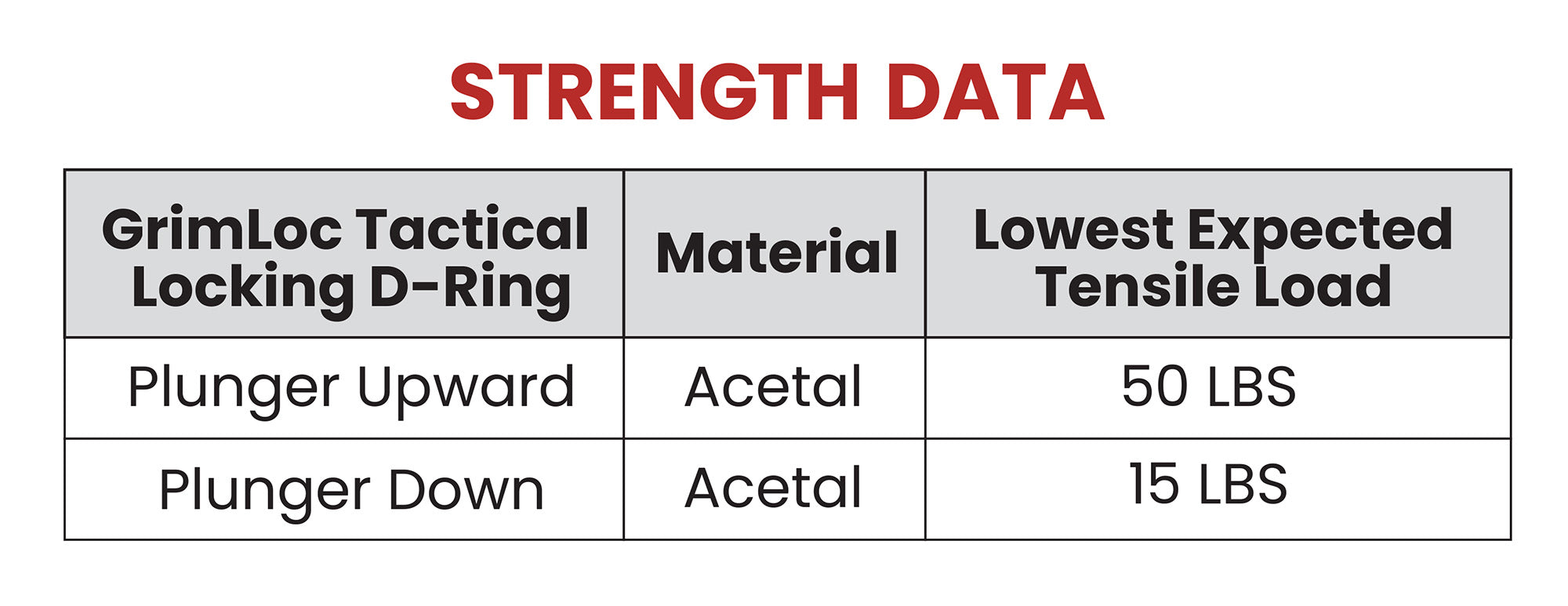

TEST PROCEDURE
Unless otherwise specified, products are laced with polypropylene webbing and are loaded in tensile at a constant travel rate of 12.5 incher per minute under ambient conditions. This simulates a gradual loading. Nylon material products are tested at dry-as-molded conditions. Results could differ significantly with moisture content of nylon material.
Please note that the above tests were performed under controlled laboratory conditions. The values shown are for reference only and are not to be used, under any circumstances, as guaranteed performance figures. Performance in normal use may vary significantly depending upon the circumstances of the actual application. If you have any questions regarding the performance of ITW Nexus products, you should thoroughly test the product in your specific application. It is the responsibility of the customer to determine the suitability of ITW Nexus products in their particular application.
